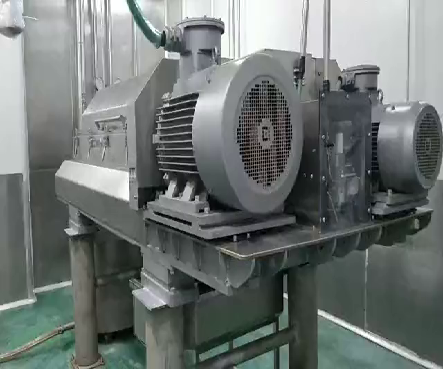

Horizontal spiral settling centrifuge

Product Overview：

      The main bearing adopts original imported SKF bearings. The main bearing of the drum at the large end is a cylindrical roller bearing, ensuring that the equipment can operate safely for a long time at high speed and withstand large loads; The large end of the spiral is equipped with thrust bearings and cylindrical roller bearings, while the small end is equipped with cylindrical roller bearings or needle roller bearings, allowing the spiral to withstand higher pushing torque.

Chassis and safety cover:

The casing is made of 316L material, and the safety cover is made of stainless steel 316L material. The special cover opening auxiliary device of Huada Company is used on the casing cover, making it easy to open, close and lock the upper cover of the centrifuge, which not only enhances safety requirements but also meets the convenience of maintenance and repair. At the same time, the top of the casing is equipped with an online cleaning device, which can fully clean the discharge port of the drum and the inside of the casing.

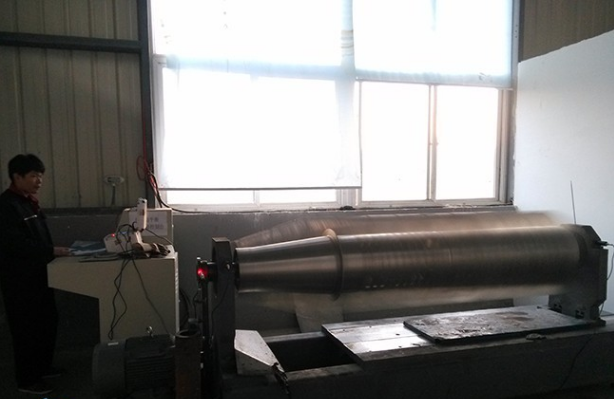

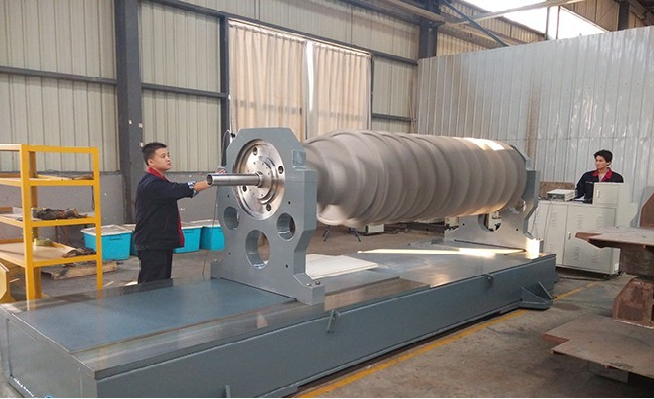

Full speed dynamic balancing technology:

Vibration control is one of the key factors in manufacturing horizontal screw centrifuges. Our company adopts full speed dynamic balancing technology, which involves dynamic balancing verification and compensation based on the actual operating speed, effectively reducing machine vibration and maximizing the removal or compensation of unbalance. This technological means can ensure that the vibration indicators of the company's produced centrifuge are far superior to industry standards and peer levels.
