GKH siphon scraper fully automatic discharge centrifuge

DESCRIPTION

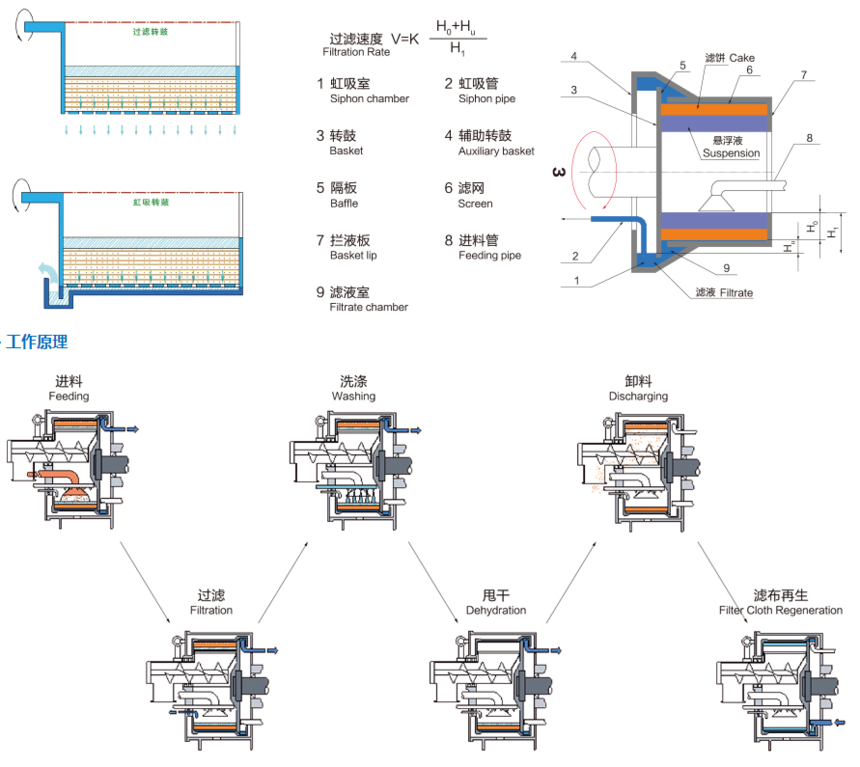

GKH siphon centrifuge is a new product developed on the basis of ordinary horizontal scraper discharge centrifuge. This type of product utilizes the siphon principle to discharge the filtrate through a siphon device or a skimming device. By adjusting the liquid level depth at the suction inlet of the siphon tube (skimming tube), the filtration driving force can be changed, thereby adjusting the filtration speed, processing capacity, filter cake moisture content, and washing effect. Configure a backwash device to achieve filter cloth regeneration and increase separation efficiency; Special configurations can be used to achieve complete regeneration of filter cloth through functions such as backwashing, strong washing, and siphoning.

1. Horizontal structure: Floating platform damping system, the machine runs smoothly with low vibration and noise.

2. Flushing device: It can perform reverse soaking and flushing on residual filter cake and filter medium to achieve filter cloth regeneration.

3. Pressure skimming device: suitable for separating materials containing proteins, colloidal substances, etc.

4. Siphon device: Hydraulic operation, fully automatic control, smooth operation. Three position control, capable of completing tasks such as separation, dehydration, and washing, with accurate angles and good repeatability.

5. Large corner design of door cover: adopting a fully automatic hydraulic locking system, safe operation, convenient maintenance, cleaning, and low labor intensity.
