PSD flat hanging bag unloading centrifuge

Product Description:

The PSD centrifuge adopts mechanical assisted unloading, which not only has the high efficiency of the fully automatic scraper centrifuge, but also has the advantage of wide applicability of the loading and unloading centrifuge. The product has advanced structural design, small footprint, low failure rate, and high cost-effectiveness.

Working principle

Under the action of centrifugal force, the material tends towards the drum wall, and the liquid phase passes through the filter holes of the drum wall covered by the filtering medium, tends towards the inner wall of the shell and falls into the chassis, and is discharged through the outlet.

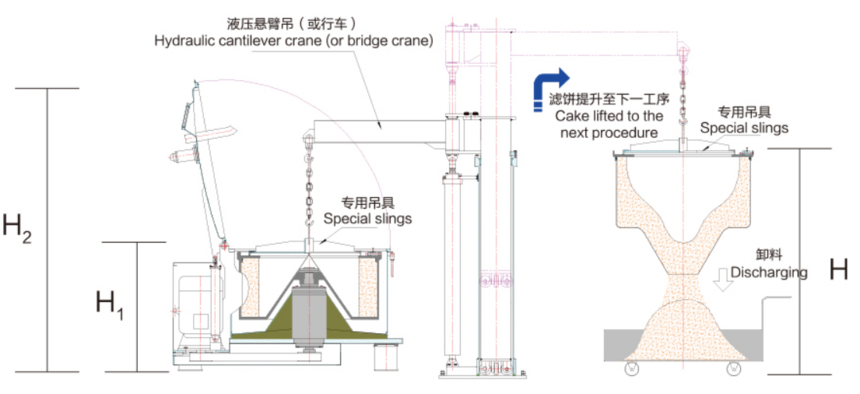

And the solid material remains in the drum and can be thoroughly washed, thus completing solid-liquid separation. After stopping the machine, open the shell flip cover and use a special lifting device to remove the filter bag to the discharge point

Unloading: After unloading, reinstall the liquid blocking plate and filter bag into the drum and lock the liquid blocking plate. Close the flip cover and lock it to start the next working cycle.

Low labor intensity and high efficiency: equipped with hydraulic cantilever crane, capable of mechanical unloading.

Grains are not easily broken: Special lifting equipment is used to lift and unload the material as a whole.

Convenient replacement of filter cloth: Unique quick detachable structure liquid blocking plate.

Opening methods: hydraulic opening, mechanical assistance opening.

Variable frequency control: smooth start-up, adjustable separation factor.

Variable frequency control: smooth start-up, adjustable separation factor.

Smooth operation: The machine has a low center of gravity and adopts a liquid damping vibration reduction device. With low vibration, it can be equipped with various configurations such as material layer control device, atomization washing tube, CIP online cleaning system, explosion-proof mirror light, etc.

It has multiple safety protections: nitrogen protection system, vibration protection, cover opening protection, overload protection, electromechanical interlocking, etc.
