PSD bag centrifuge

Main features:

1. Adopting frequency conversion control, the startup is smooth and the separation factor is adjustable.

2. Unloading with hanging bags, the grains are not easily broken; Low labor intensity and high efficiency; Strong universality and wide applicability.

3. The structural design is reasonable, the transition of structural components is smooth, and the surface is polished to effectively eliminate hygiene blind spots. The external structural components, fasteners, and drum are made of stainless steel. The shell is flip type, which can thoroughly clean the space between the centrifuge shell and the drum compartment.

4. The machine base and casing are welded together as a whole, with high load-bearing strength.

5. The machine base is a flat plate structure, which lowers the center of gravity of the machine and reduces the installation space. The flat plate base can also serve as an operating platform, making it easy to operate.

6. Equipped with liquid damping shock absorbers, the vibration reduction effect is good and daily maintenance is simplified.

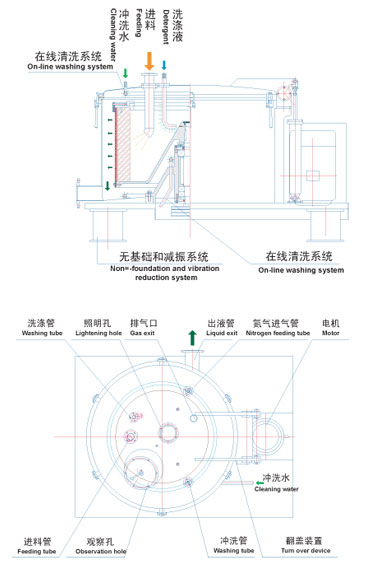

7. Flip cover of the shell, equipped with feeding tube, washing tube, observation mirror, and lighting hole.

8. Equipped with an online cleaning system (optional), it can clean the internal invisible parts such as the inner wall of the centrifuge shell, the inner and outer surfaces of the drum, and the surface of the collection tank, ensuring cleanliness requirements and complying with GMP standards.

9. Sealed structure, with sealing components made of silicone rubber or fluororubber, equipped with a nitrogen protection system (optional), can achieve sealed explosion-proof requirements, suitable for applications in toxic and flammable/explosive environments.

Users should determine specific configurations (materials, online cleaning, explosion-proof requirements, nitrogen protection, surface treatment requirements, electrical component brands, control methods) according to actual process requirements when placing orders, in order to meet technical and economic requirements.

product mix

Technical Parameter
