LW series horizontal settling centrifuge

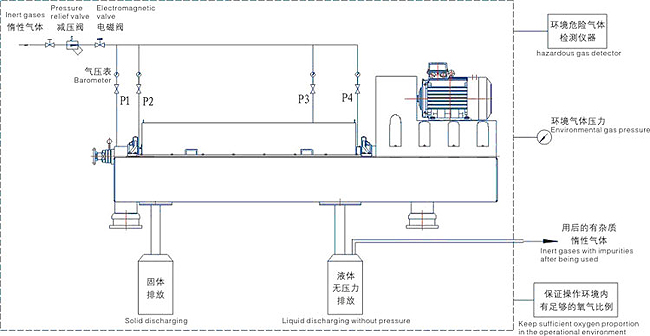

Description of inert gas and mechanical seal structure:

The special sealing structure is composed of inert gas and mechanical seal, which can prevent external air from penetrating into the centrifuge and also prevent gas leakage from the centrifuge to the external environment.

The mechanical seal consists of several sealing rings, which isolate the flammable and explosive gases inside the centrifuge from the outside air; Inert gas is added to the middle of the sealing ring and infiltrates into the interior and external environment of the centrifuge through a narrow sealing gap. The pressure of the inert gas added is higher than the air pressure inside and outside the centrifuge (the pressure difference of the inert gas added can be controlled). Therefore, when non flammable and explosive gases (inert gases) are formed inside the centrifuge casing, the explosive gases produced by flammable and explosive materials cannot mix with oxygen in the air, ensuring the safe operation of the centrifuge.

The scope of use of explosion-proof centrifuge:

Solid liquid separation of flammable and explosive materials in industries such as chemical, petrochemical, and pharmaceutical;

Gas is not allowed to leak into the external air during the solid liquid separation process.

Explosion proof grade of explosion-proof centrifuge: dIIBT4

Main specifications and parameters of the product
